Ray

Striking dimension.
Magic radiance.

Tapermoon Ray incorporates all the qualities and utility of the Sky floor lamp plus the versatility and beauty of a pendant light. Ray enhances the verticality and generosity of any space. Suspended from above on thin cables, Ray seems to hover in space, giving the impression of light magically emanating from thin air.

When installed in clusters, Ray can span larger heights and create chandelier-like arrangements—addressing visual and illumination needs often found with staircases, lobbies and conference- and ballroom-type situations.

Also, Ray perfectly fits corners and nooks, architectural features that tend to pose particularly difficult illumination challenges.

In combination with a standard dimmer switch and a suitable driver, Ray’s luminosity can be adjusted from a subtle glow to full brightness.

Design
Bernhard Dietz

Materials
Shades:
Paper, folded
Core:
Acrylic and aluminum tubing
Acrylic and aluminum fittings
Canopy:
Sheet aluminum, folded

Illumination
Diffused all around

Installation
Ceiling-mounted (bolted)
Hard-wired

Lamp
High-efficiency LED arrays (dimmable with suitable LED driver)
12 Volt DC, 30 Watt (transformer/driver for line voltage available separately)
CRI Ra>90
2700 K (warm white)
1200 Lumen

Control
Wall switch
Dimmer switch (suitable LED driver available separately)

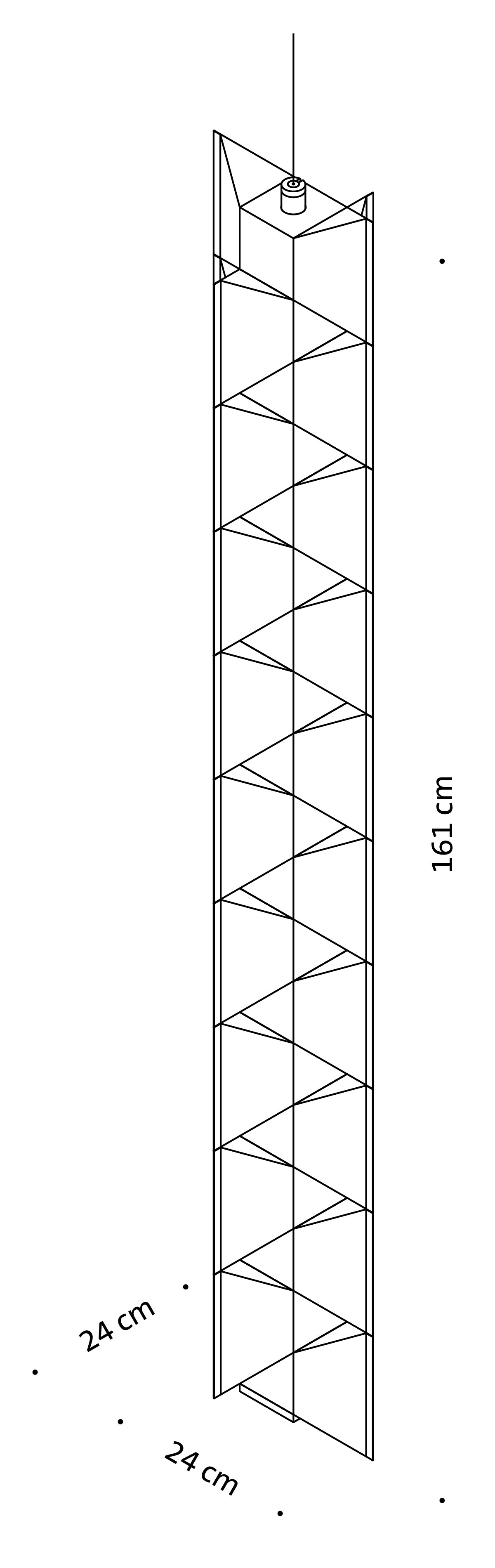

Dimensions and weight (approx.)
WxDxH:
24 cm x 24 cm x 161 cm /
9.5” x 9.5” x 63.5”
1.1 kg /
2.5 lbs
